Document Control at the Point of Production
ProAlert™ brings controlled documentation directly to the point of production execution. Operators see only current, approved documents, tied to the product they are running, the components in its bill of materials, and the equipment they are operating... eliminating reliance on paper binders, shared drives, and tribal knowledge.
The bottom line: ProAlert is the single operational source of truth for document status, applicability, revision, and point-of-use access across operational, safety, and quality documentation. The result is faster operator response, lower audit risk, and a stronger compliance posture for ISO 9001, IATF 16949, and AIAG-aligned customers.
The Problem Document Control Solves
In most manufacturing environments, controlled documentation lives separately from the systems that run production. This creates compounding risk on the shop floor and during audits.
-
Documents are not at the point of use.Operators reach for paper binders, network shares, or memory rather than the live system that already knows what they are running.
-
Revision drift is invisible.When a Control Plan or Work Instruction is updated, there is no enforced mechanism to ensure the prior version stops being used at the machine.
-
Audit preparation is manual and stressful.Pulling together the documents in effect on a given date for a given part requires hours of cross-referencing spreadsheets and shared drives.
-
Safety information is detached from operations.Safety Data Sheets for hazardous components in a bill of materials are often not surfaced to the operator who is actually handling them.
-
Compliance is reactive rather than embedded.Documentation is treated as an audit-time concern rather than an operational one... which means the exposure never stops.
Our Approach: Documentation at the Point of Use

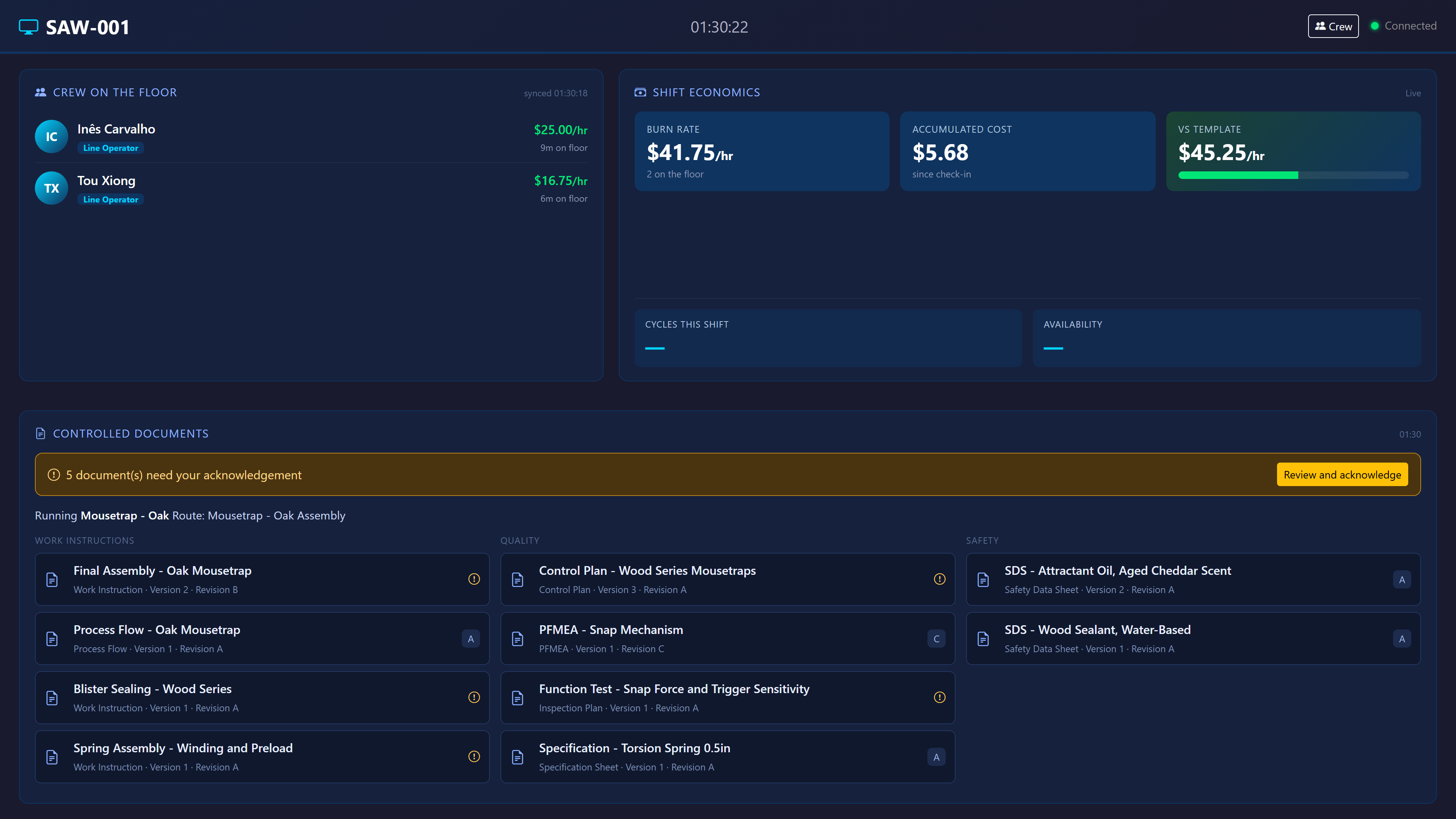

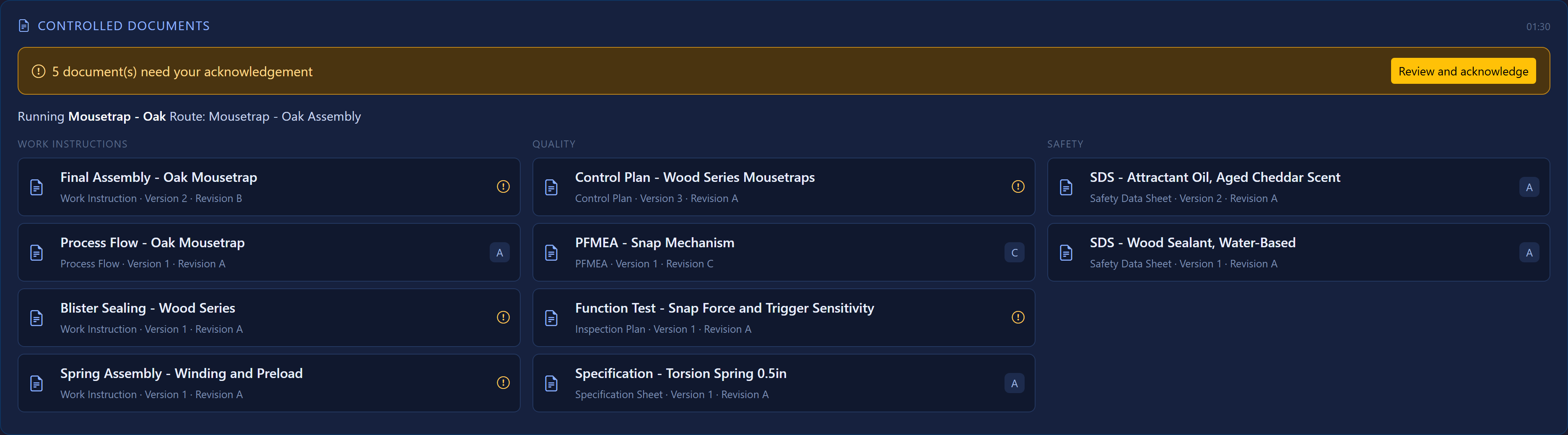

ProAlert provides a Product Context Panel... the documents panel on the Schedule HUD at the work center, the Controlled Documents panel on the operator kiosk at the machine, and the Docs tab in the mobile app. It surfaces every document relevant to the work in progress. Documents are linked to the entities they govern (products, components, operations, assets), version-controlled with full approval history, and resolved automatically based on what is currently being run.
Documents do not appear simply because they exist. A document reaches an operator because somebody linked it to the product, component, route step or asset it governs, and because it is approved. That linking is the setup work, and it is what makes the panel trustworthy: what is on the screen is there on purpose.
What Operators See
What Engineers and Quality Staff Get
Engineering and quality staff get a controlled lifecycle for every document (draft, submit for approval, approve, publish, obsolete) with full audit history of who did what and when. Documents can be linked to products, components, routes, and equipment, and the system enforces that only one Active version of each document type exists per context.
What Auditors Get
A one-click audit view per product or work center, showing every linked document, its version history, approval chain, and effective dates. The system answers the auditor’s most common question... “What documentation was in effect when this part shipped?”... without manual reconstruction.

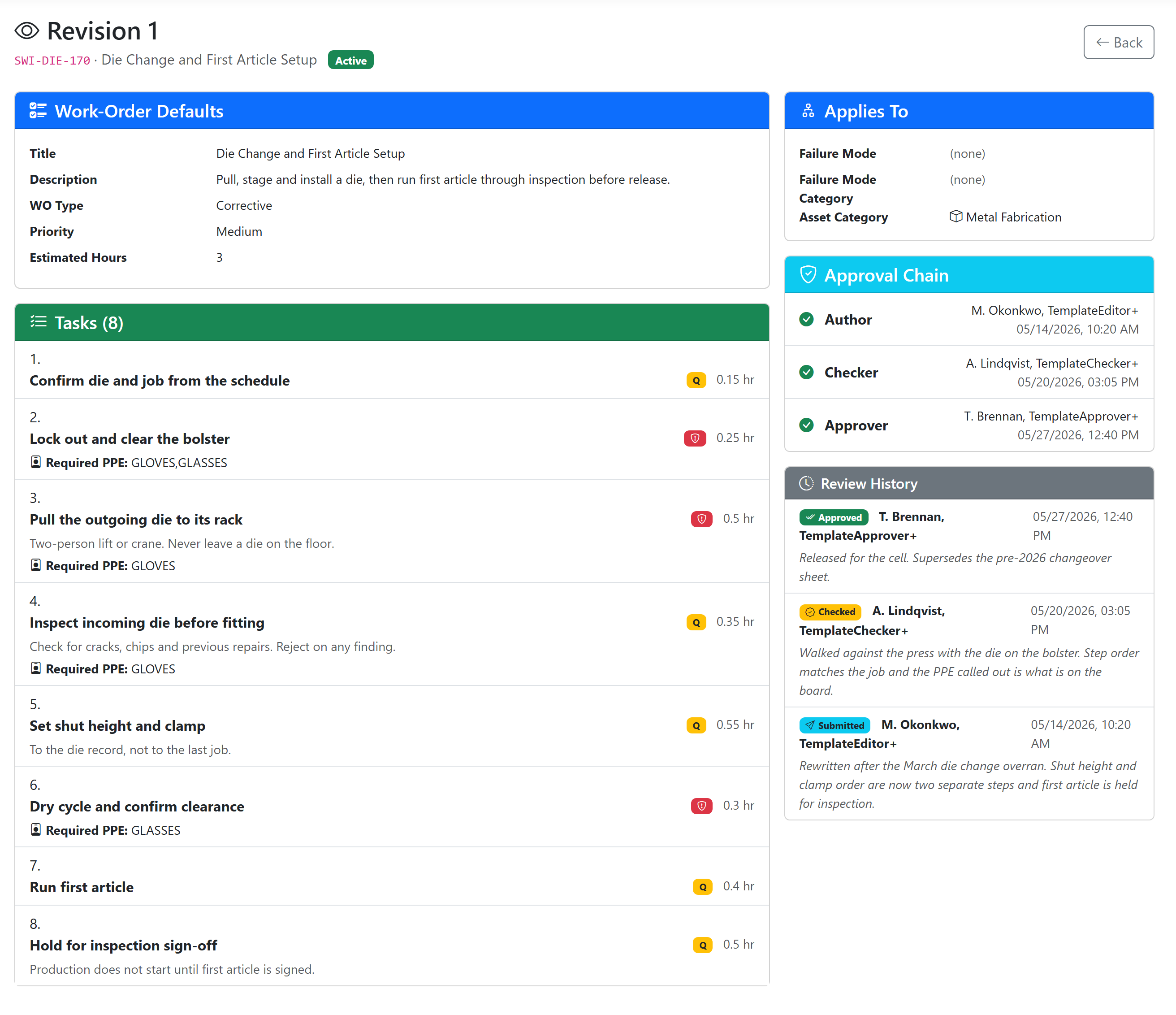

SWI-DIE-170 is the die change procedure, at revision 1, badged Active: eight steps with the PPE each one requires and the time it should take. The panel above the signatures is what binds it to the floor, so the procedure is delivered to metal fabrication rather than sitting in a folder someone has to go and find. The chain beneath is not a rubber stamp. The author submitted it in May after a changeover overran, the checker walked it against the press with the die on the bolster six days later, and the approver released it a week after that... three people, three dates, and the reason each of them gave still attached.Document Types Supported
Compliance Alignment
The system is designed to satisfy the documented information requirements of the standards your customers are audited against:
-
ISO 9001 §7.5 (Section 7.5)ProAlert supports ISO 9001 §7.5 documented-information controls through identification, revision control, approval status, effective-date management, and point-of-use availability.
-
IATF 16949 (Automotive Quality Management System)Configuration and engineering change controls are inherent to the version, approval, and effective-date workflow.
-
AIAG Reference Manuals (Automotive Industry Action Group)Control Plan and PFMEA conventions are honored by treating each as a controlled, separately-approved document linked to the part and process it governs.
Variation Strategy: When the same product runs on different equipment, asset-specific differences (machine quirks, tooling notes, setup variations) are captured inside the controlled document itself. ProAlert does not support appendix-style amendments or asset-specific overrides as separate metadata. This is a deliberate design decision... appendix-style addenda introduce drift risk and create audit ambiguity around which combination of documents was in effect at a given time. One controlled document per process variant, fully approved as a unit, is the conservative compliance choice, and is designed to support IATF 16949 document and engineering-change control requirements.
Core Capabilities
-
Document Library & LifecycleUpload, draft, submit for approval, approve, publish, and obsolete documents. Full version history with separation of duties on approvals.
-
Revision Handover in One StepIssue a revision of a released document and the current one keeps governing production until the new one is approved. At that moment the old revision is retired and everything it governed moves across together... no window in which a part has no control plan, and no chance of the old one being left in place. The handover runs on approval, so it applies to the document types you have set to require review. A type deliberately configured to skip review has no approval step to hang it on, and its links stay with the predecessor until they are moved: one more reason to put the documents that govern production through review.
-
Policy at Any Level of the OrganisationA quality manual, quality policy or safety policy attaches to a node of the business hierarchy... the company, a legal entity, a plant, an area or a cell... and reaches everything beneath it. Nobody attaches the safety policy to each machine.
-
Standards on Daily ManagementLeader standard work routines and tiered meetings carry the controlled document they are run to, so the leader on a gemba walk opens the standard from the checklist rather than looking for it.
-
Contextual LinkingDocuments link to the entities they govern: products, bill of materials components, manufacturing routes, operations, and equipment.
-
Operator-Facing Product Context PanelSurfaces the relevant Control Plan, Work Instructions, Safety Data Sheets, and supporting documentation directly in the schedule view... no searching required.
-
Bill of Materials WalkerDrills from product to component documentation... particularly Safety Data Sheets for hazardous components.
-
A Read-Only Login for the AuditorExternal Auditor is a shipped role with read-only access, so a third-party ISO or QMS auditor can be given their own login rather than sitting behind somebody's shoulder or being handed an export. What they see is every linked document with its version, revision, approval record and effective dates, and no way to change any of it.
-
Acknowledgment TrackingEach person acknowledges for themselves, against the exact version and revision they read. When a revision goes live, every earlier acknowledgment is stale and everyone required to read it is prompted again.
-
Production-Start EnforcementConfigurable per asset, and advisory or blocking according to your policy. Set to blocking, a run will not start without its required governing documents; set to advisory, the operator is warned and decides. Nothing locks down a line unless you configure it to.
-
An Approval Queue, Not an InboxA Quality queue holds documents waiting to be reviewed, with approve, reject and obsolete actions on each. The author cannot release their own document unless an administrator has explicitly allowed self-approval for a small site, and that decision is itself a setting on the document control screen rather than a habit.
-

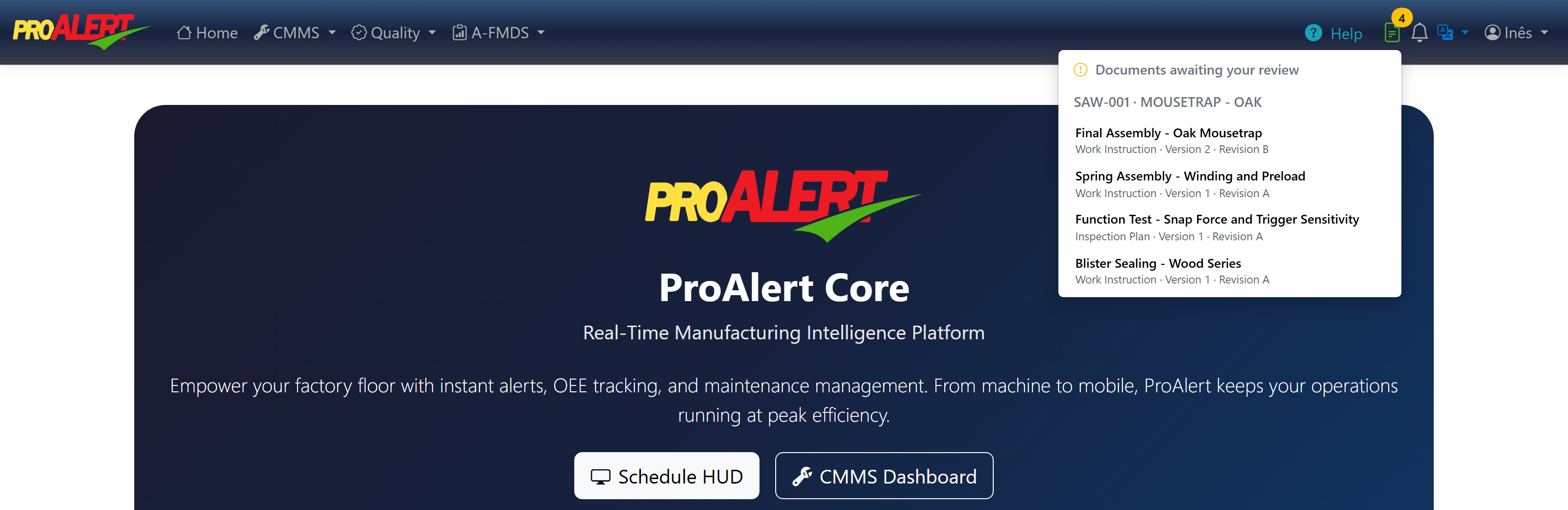

You Are Told What You OweA count of the documents the signed-in person owes a review sits in the navigation bar, and on the tablet it sits on the title bar of every screen, one tap from the list. Nobody has to go looking to find out they are behind.
-
The Floor Nominates Documents for ReviewReview signals are collected from what actually happens: a quality deviation, a scrap spike, recurring downtime. A document that keeps showing up behind problems is surfaced as one that may be out of date, rather than waiting for its calendar review to come round.
-
At the Machine, Not Just in the LibraryThe heads-up display at the cell lists the documents governing the job that is running, with acknowledge actions on them, and the asset detail page carries a governing-documents card showing acknowledgement state. A link admin screen lists every document link, and a rejected link names the document it conflicts with rather than failing quietly.
-
Your Documents Stay on Your NetworkProAlert runs on your network and your controlled documents stay there, on the same server as the rest of the system. No document leaves the plant, and there is no third-party storage account to review, budget for, or explain to a customer auditing your supply chain.
Governance & Risk Controls
Role-Based Access
| Role | Permissions |
|---|---|
| Operator | View current, approved documentation for the work in progress, and acknowledge the revisions they are required to read. |
| Supervisor | Operator capabilities, plus visibility of who has acknowledged the current revision and who has not, for compliance follow-up. |
| Engineer | Upload, link, revise, and submit documents for approval. |
| Quality / Admin | Approve, publish, obsolete, and audit. Separation of duties is enforced... no self-approval. |
System-Level Risk Controls
-
The Policy Itself Is ConfigurableA settings screen decides which document types go through review before use, which of them block a production run, and whether an installation with one quality person may approve its own uploads. The rules are yours to set, not ours to assume, and the default is the conservative one.
-
Single Source of TruthThe system enforces only one Active document per type per context, so “which version is current?” has one answer the system will give you.
-
No Silent OverwritesApproving a new revision archives the prior version with full history retained for audit. Nothing is deleted, everything is auditable.
-
A Read-Only Role for External AuditorsExternal Auditor ships as a role with read-only access, so documentation can be exposed to a third party without granting any modification rights anywhere in the platform.
One Policy, Every Cell Under It
The documents an auditor asks for first are the ones that govern the business rather than a part: the quality manual, the quality policy, the safety policy. In most systems they sit in a separate folder from the work instructions, which is why an operator has never read them.
In ProAlert they attach to a node of the business hierarchy and flow downwards. A safety policy on the plant is available at every cell inside it, and because the hierarchy is a directed acyclic graph rather than a tree, a cell that rolls up by geography and by product family at the same time inherits from both without the document being filed twice.
They appear on the operator’s panel in their own section, labelled with the part of the organisation they came from, so a corporate policy is distinguishable from a plant one at a glance. A missing corporate policy never blocks a production run: that check asks whether the part has what it needs to be made. A policy that asks to be acknowledged is prompted for like any other document.
Success Metrics
The success of Document Control is measured against operational, audit, and adoption indicators:
What Stays the Same
ProAlert does not change how your team authors documents or what they contain. Existing authoring tools (Word, Excel, PDF, CAD systems) remain in use. ProAlert provides the controlled storage, lifecycle, linkage, and point-of-use access layer around those documents. Existing documentation can typically be imported without re-authoring. Revision metadata, approval baseline and the links that decide where a document appears still have to be set as part of bringing it under control.
Getting Started
Each implementation is shaped by the customer’s existing quality system and document conventions. The following considerations help guide a successful rollout:
-
Identify the document types in scope for your initial rollout and confirm naming and revision conventions.
-
Choose a pilot product line and work center to validate the operator workflow before broader deployment.
-
Confirm role definitions and approval chain conventions with your quality team, ensuring separation of duties is preserved.
-
Validate the embedded-variation strategy against your registrar’s and customers’ audit expectations.
-
Plan an initial document import from existing libraries (shared drives, paper binders, legacy QMS systems).
See Document Control in a live demo.
We’ll walk through the Product Context Panel, the approval workflow, and what your auditors will see... using your document types and your compliance requirements.
